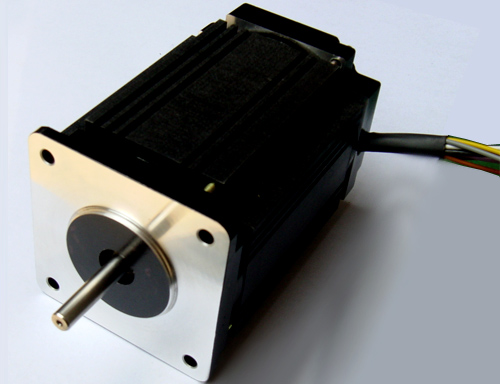

0.72° SIZE 64mm 5-PHASE HYBRID STEPPING MOTOR(0.72° 64HW系列五相混合式步进电机):
General Specifications
Step Angle Accuracy: ±5%
Resistance Accuracy: ±10%
Inductance Accuracy: ±20%
Temperature Rise: 80°C MAX
Ambient Temperature:-20°C ~ +50°C
Insulation Resistance:100MΩMIN ,500VDC
Dielectric Strength:500V AC 1 minute
Shaft Radial Play:0.04MAX
Shaft Axial Play:0.08MAX
SIZE 64mm Motor Specifications(64HW电机技术参数)
型号
Series
Model |
步距角
Step
Angle
(°) |
机身长
Motor
Length
(mm) |
电流
Rated
Current
(A) |
电阻
Phase
Resistance
(Ω) |
静力矩
Holding
Torque
(Kg.cm Min) |
转动惯量
Rotor
Inertia
(g.cm²) |
引线数
Lead
Wire
(No.) |
重量
Motor
Weight
(g) |
|
64HW6100 |
0.72 |
64 |
1.2 |
0.77 |
4.0 |
0.6 |
10 |
|
|
64HW8101 |
0.72 |
83 |
1.2 |
0.93 |
7.3 |
0.6 |
10 |
|
|
64HW9102 |
0.72 |
93 |
1.2 |
1.41 |
9.0 |
0.6 |
10 |
|
|
64HW9103 |
0.72 |
98 |
1.2 |
1.55 |
9.2 |
0.6 |
10 |
|
*以上仅为代表性产品，该产品广泛应用于印刷，电子设备等。
Dimensions(外形图): unit=mm
